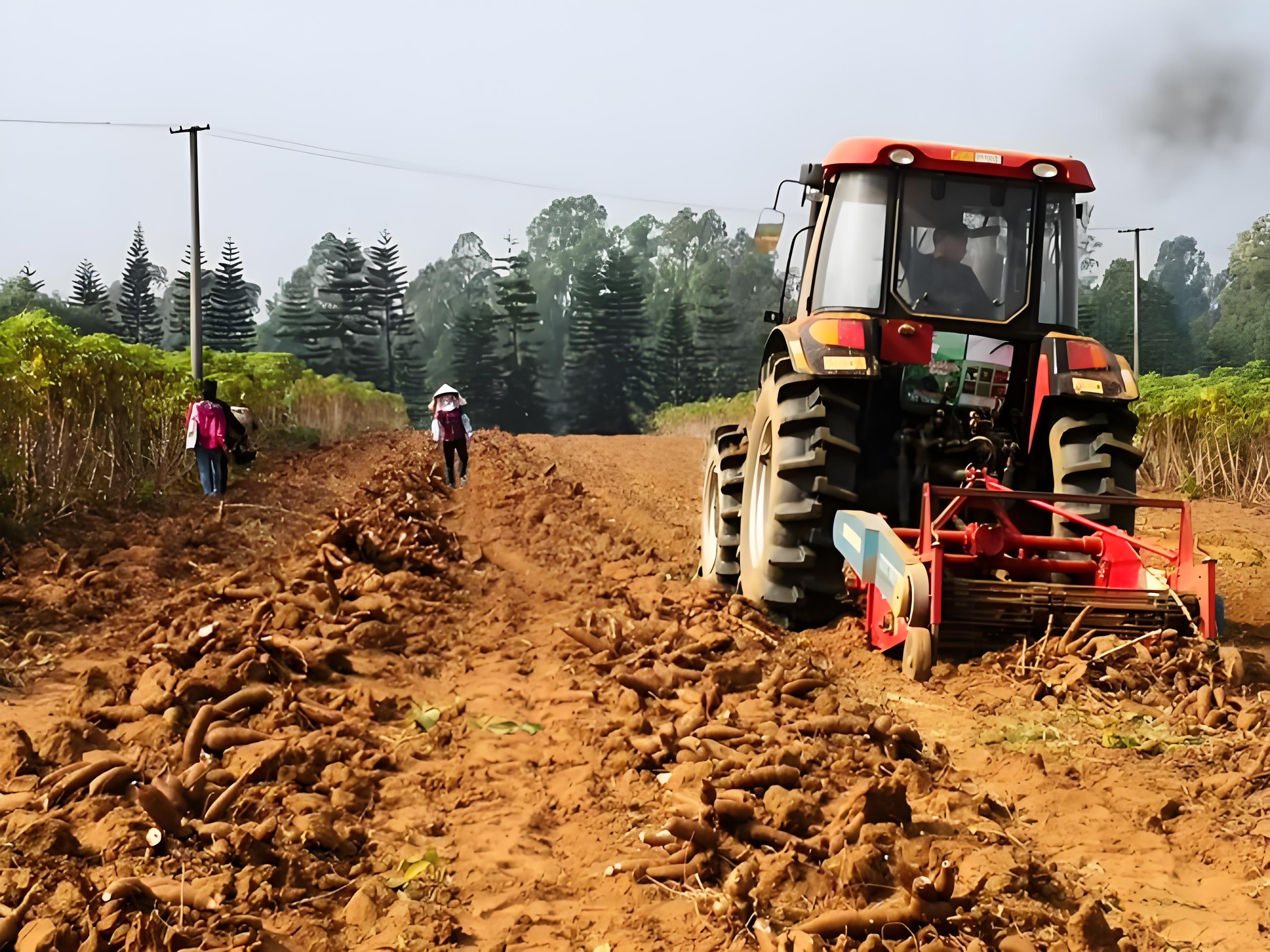

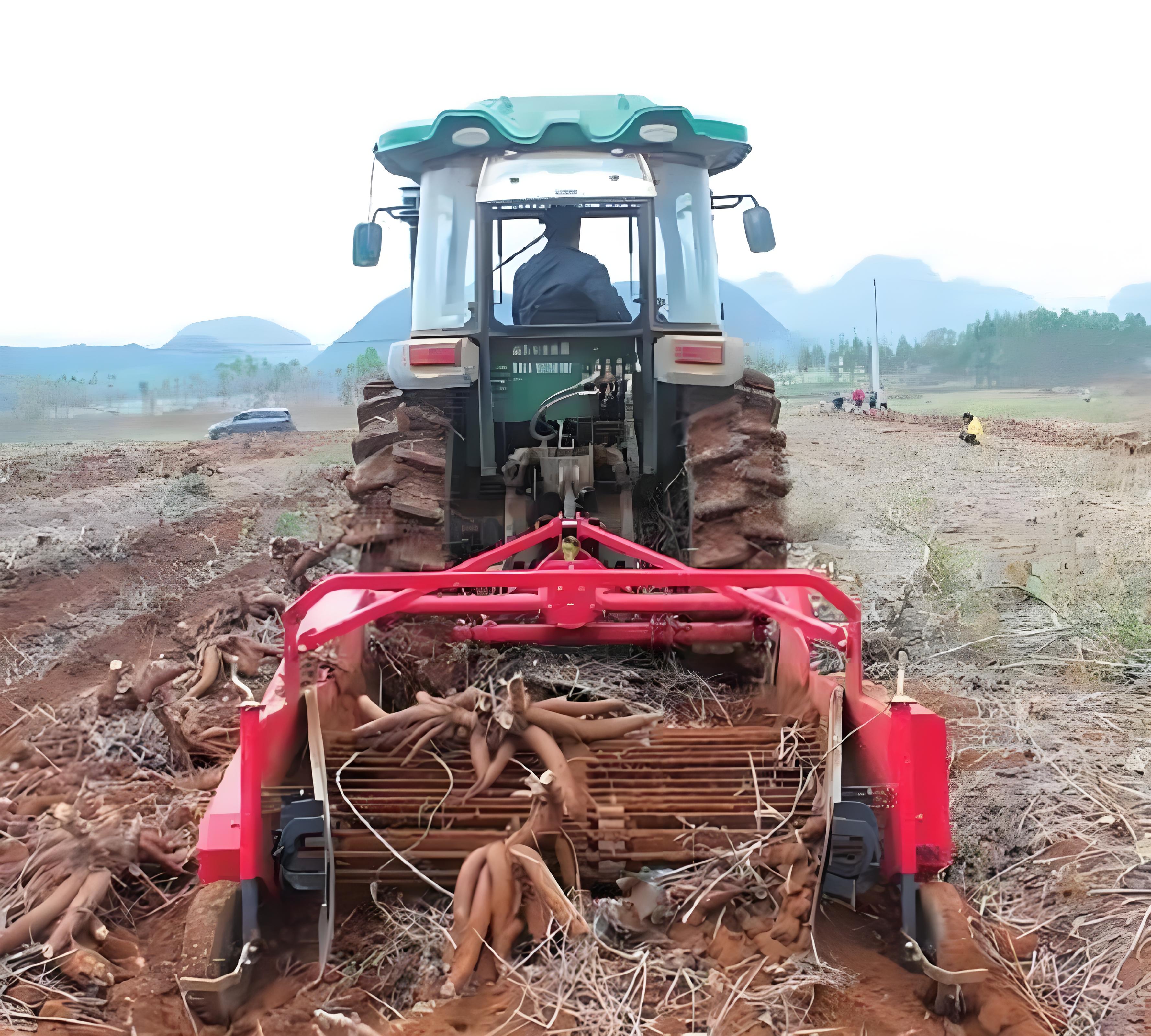

Cassava Harvester

Cassava harvester is a specialized agricultural machine designed to efficiently harvest cassava, a root vegetable widely cultivated in tropical and subtropical regions for its starchy tubers. Traditional harvesting methods involve manual labor, which can be labor-intensive and time-consuming. Cassava harvesters automate this process, improving efficiency and reducing labor costs.

 How Cassava Harvesters Work：

Cassava harvesters typically consist of several key components:

Cutter blades:

These are used to cut the stems of the cassava plants at the base.

Lift and pull mechanism:

After cutting the stems, a lift and pull system is used to uproot the tubers from the soil.

Conveyor system:

Once pulled, the tubers are transported via a conveyor belt to a collection area.

Advantages of Cassava Harvesters：

Increased Efficiency:

Cassava harvester significantly speeds up the process compared to manual labor, allowing farmers to cover larger areas in a shorter amount of time and reduce the labor cost.

Consistency of Quality:

Cassava harvester ensures that the cassava tubers are harvested at the right time, which helps in maintaining quality.

Enhanced Safety:

Using cassava harvester can reduce physical strain and injuries of workers, making it a safer alternative for farm workers.

Adaptability:

Our cassava harvesters are designed to work in various soil types and conditions, making them versatile for different farming environments.

Model:4UM-80

Structural style: Suspension type

Excavating device:Fixed blade

Dimension: 2750x1250x1340mm

Blade material:65 Mn

Pack dimension:2750x1250x1340mm

Depth range:0-400mm

Weight:400kg

Conveyor type:Grid chain type

Working width:800mm

Conveyor chain clearance:95mm

Chain bar material:45 square steel

Collection methods:Collection box

Supporting power:>50 Hp

Volume of collection box:0.5m³

Output shaft speed:540r/min

 Discharging mode:Open door for unloading

Suspension width:730mm
