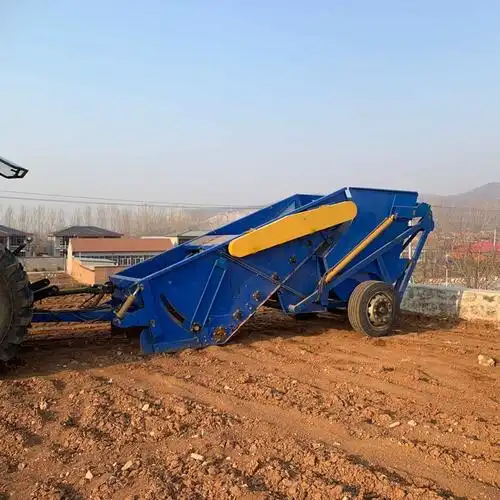

Farm Rock Picker

Farm Rock Picker is a kind of mechanical equipment specially used for clearing stones in farmland, orchard and other agricultural fields.

The Main Structure of Stone Picker:

Traction device, digging device, conveying device, stone collection box, transmission device, frame composition.

Scope of application of rock picking machine:

It is suitable for the soil with water content not < 20%, and the diameter of stones is about 3-40cm.

Farm Rock Picker Working Principles:

The filed stone picker is driven forward by the traction device when working in the field. The picking mechanism runs on the ground and picks up the stones by various means and passes them to the conveying device. The conveying device conveys the stones to the separating device for separation, then transports the stones to the unloading device and finally unloads the stones.

During Farm Rock Picker process, the power and traction device ensure that the stone picker can operate stably, and all components work together to achieve efficient and continuous stone cleaning operation.

Application of the Rock Picker:

Our stone picking machine mainly used in a variety of farmland, orchards, vegetable gardens and other agricultural production areas, especially in the mountains, hilly areas or land with more stones, the effect of the stone picker is more significant.

The Farm Stone Picker Parameters:

Model :160

Stone size:4-30cm

Beach Stone Picking Machine Working width:160cm

Stone Picking Machine Working depth:10-25cm

Stone Picking Machine Collecting : collecting stone box

Stone Picking Machine Box volume:3.6m³

Discharge method:fluid pressure type

Tire model:445/45R19.5

Supporting tractor power: 110.3-161.8 Hp
