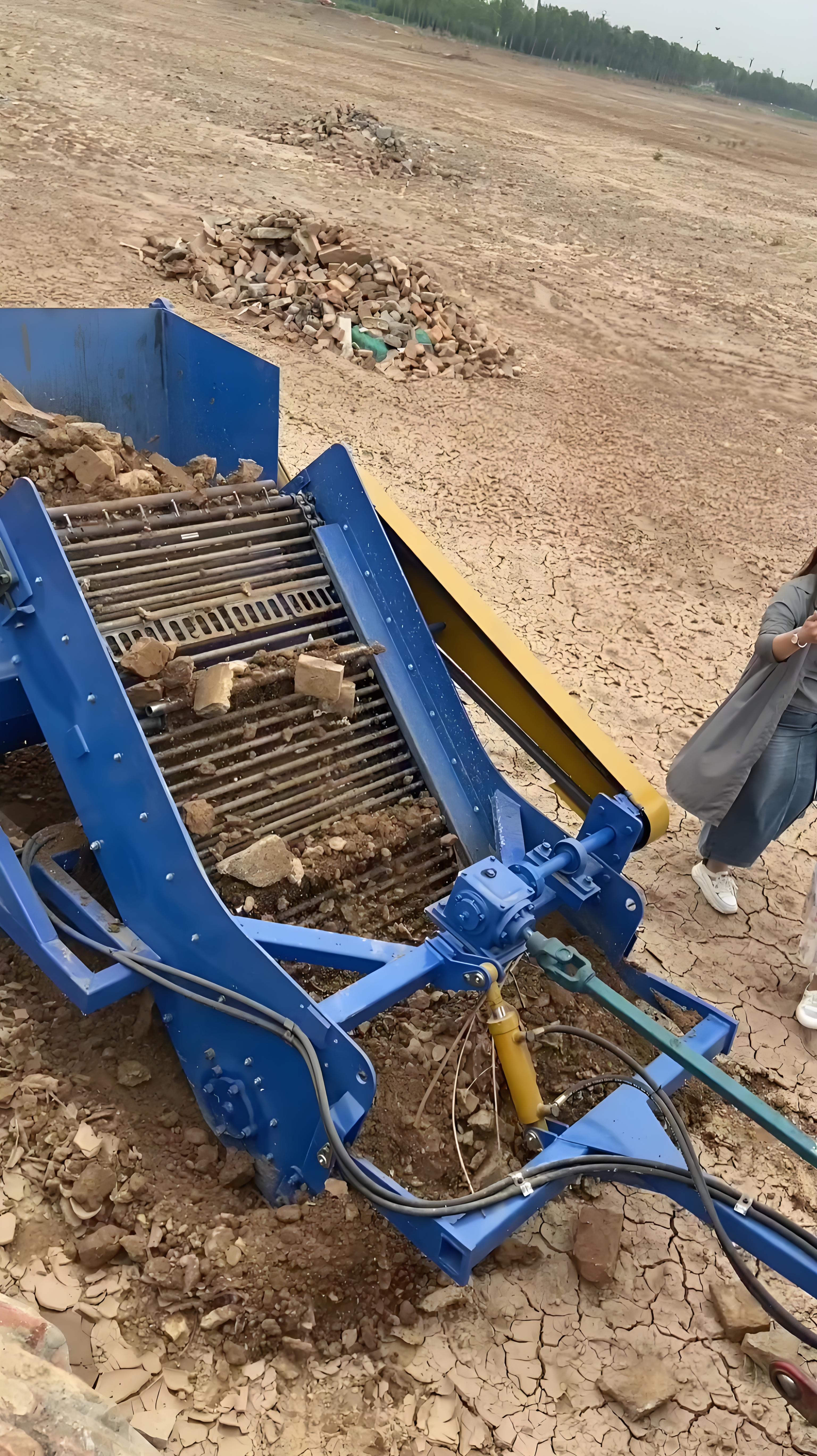

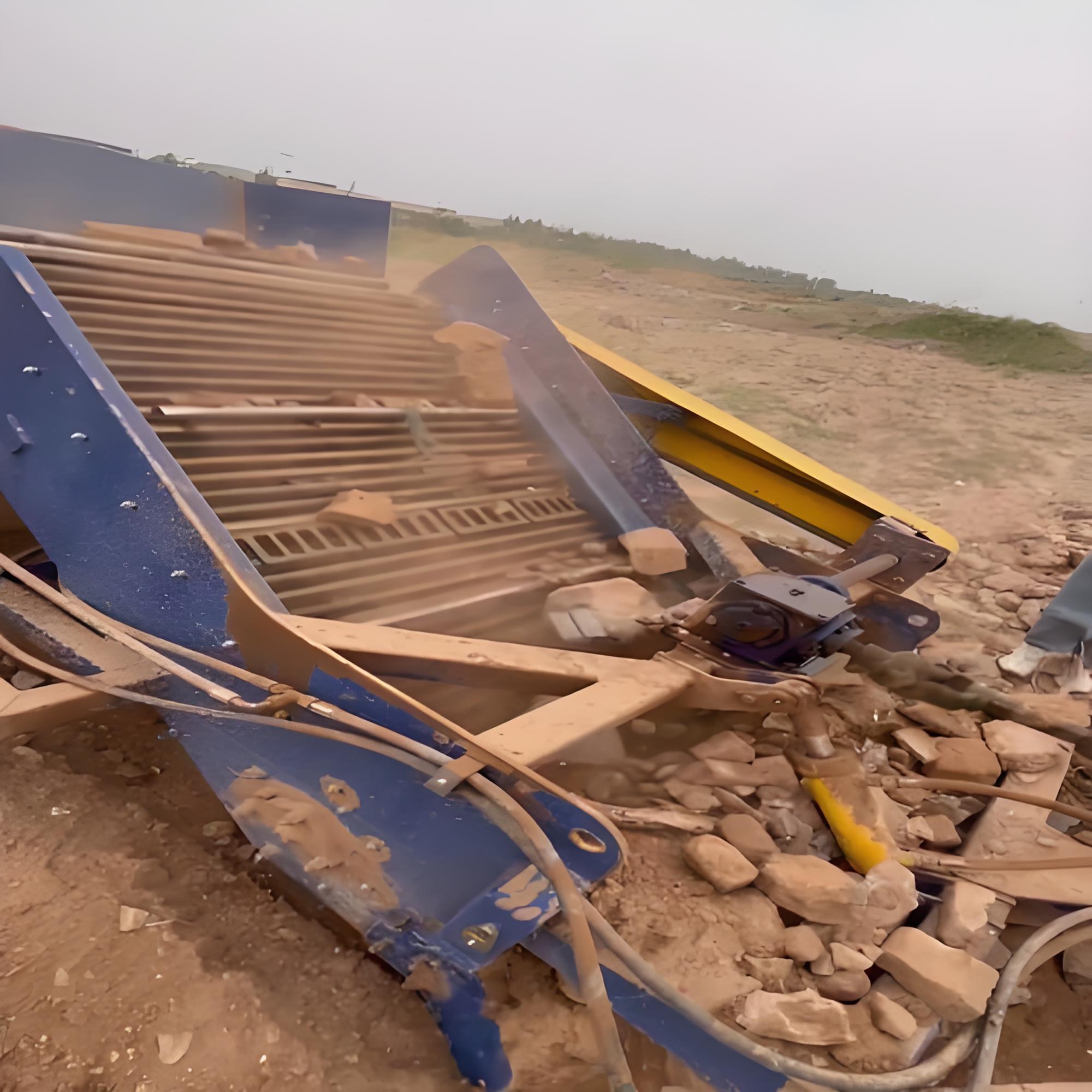

Farm Stone Picking Machine

Stone picker is an agricultural machine used for cleaning ground stones in farmland, mining areas, and green buildings.

Farm stone picking machine main uses include:

Stone picker can remove stones from farmland, improve soil structure, mountainous and hilly areas, the use of farm stone picking machine can improve land availability and productivity due to the large amount of debris and stones in the soil.

During the process of reclaiming farmland in mining areas, stone pickers can be used to remove stones and gravel from the soil.

Stone pickers can help clear the stones brought by mudslides and restore the agricultural use function of the land.

The rock picking machine can be used to clean up silt and stones in farmland after flood, helping to quickly restore production.

Rock picker can be used to clean ground stones, providing clean working surface for construction and greening.

The stone picker can not only clean the stones, but also screen and separate them for easy reuse or processing.

We provide the characteristic of the stone picking machine include overall stability of the equipment, selection of high-strength materials for the screening strip, use of high wear-resistant materials for the digging shovel, and independent transmission of hydraulic motors for the conveyor chain and upper conveyor belt. These features make the stone picking machine more efficient and durable during operation. The stone picking machine has simple design structure, easy operation, and flexible mobility.

Farm stone picking machine can be used in conjunction with four-wheel tractor and can complete multiple tasks such as excavation, sorting, conveying, collection, loading and unloading in one operation.

Farm Stone Picking Machine Parameters:

Model :11JS120

Stone size:4-30cm

Working width:130cm

Working depth:10-25cm

Collecting : collecting stone box

Box volume:3.0m³

Discharge method:fluid pressure type

Tire model:295/60R22.5

Supporting tractor power: 102.9-161.8Hp
