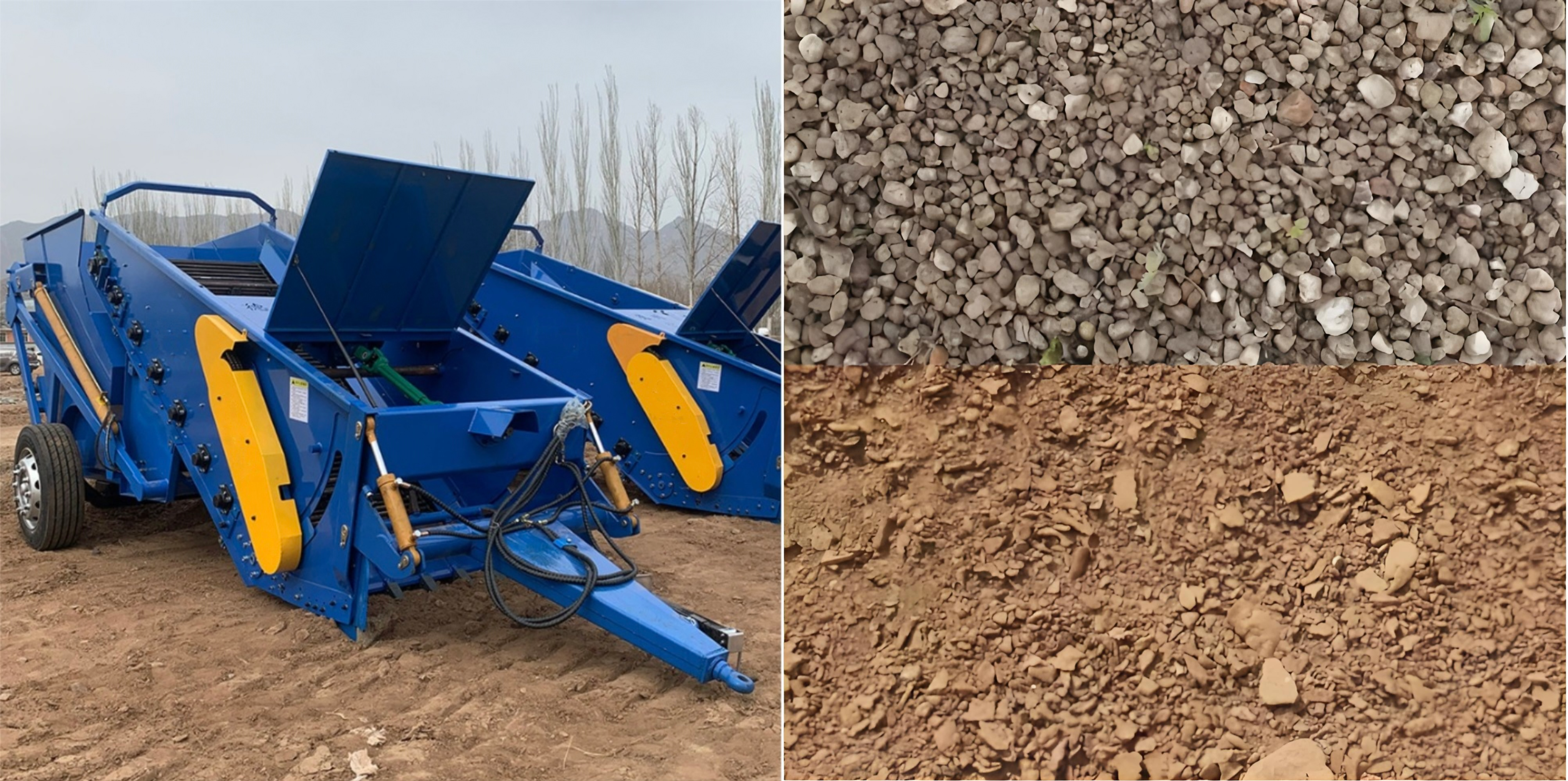

Rock Picker for Farm

A rock picker for farm is a specialized farmland machine designed to pick stones quickly, efficiently, and keep soil collection to a minimum.

A rock picker for farm improves soil quality, prevents damage to farming equipment, and enhances crop yields by clearing obstacles.

Benefits:

Using rock picker for farm can save labor and time compared to manual picking.

Using rock picker for farm can protect machinery from stone-related damage.

Using rock picker for farm can prepare fields for planting or tilling efficiently.

Rock Picker for Farm Parameters:

Model: 11JS-160

Structural Style: Trail-Type

Driving Mode: Wheel Type

Tire/Track Model: Tire 445/45R19.5

Number Of Tires/Tracks: 2

Tire/Track Spacing (Center): 2250mm

Working Size: 7000*2700*2800mm

Overall Weight: 4800kg

Working Width: 1600mm

Supporting Power: ≥150Hp

Matched To The Power Output Shaft Speed: 540r/min

Digging Depth Adjustment Range: 0-300mm

Type Of Excavation Device: Backhoe Stabilizer

Type Of Cleaning Separation Device: Hob Sorting

Conveyor Type: Grid Chain

Conveyor Chain Gap: 50.8mm/63.5mm

Pick Up The Smallest Size: 28.8mm/41mm

Chain Bar Material: 45#Carbon Steel

Collection Methods: Collection Box Centralized Collection

Volume Of Collection Box: 3.6m³

Heating Method: Hydraulic Cylinder

Unloading Height: 2000mm
