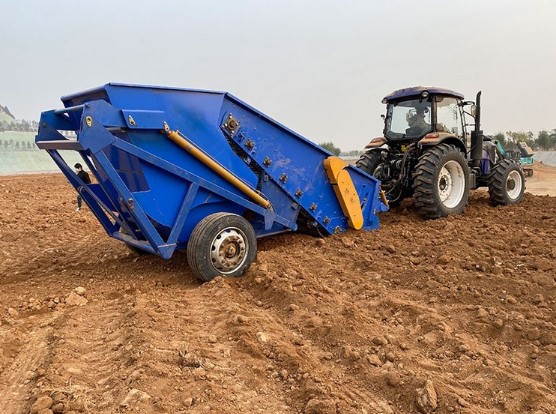

Rock Picker Machine

 Stone Picker

A stone picker is an agricultural machine specially used to collect stones on the surface of the field and within a certain depth. It separates stones from the soil through digging, screening and conveying devices, and collects them into storage boxes, thus facilitating the subsequent use of the land.

The main features of the stone/ rock  picker include efficient working performance and adaptable design. Its working principle is to use the digging device to turn over the stones in the soil, remove the excess soil through the separation and screening device, and Rock Picker Machine transport the stones to the storage box by the conveying device. In addition, the stone picker is usually equipped with hydraulic unloading system. Rock Picker Machine can easily unload the collected stones to the designated location. The working width and digging depth of the machine can be adjusted according to actual needs and are suitable for different types of soil and terrain.

Farm Stone Picker Parameters:

Stone Picker Model :190

Stone size:4-30cm

Working width:190cm

Working depth:10-25cm

Collecting : collecting stone box

Box volume:4.1m³

Discharge method:fluid pressure type

Tire model:445/45R19.5

Supporting tractor power: ≥147.1Hp

Product Advantages of Picker Machine:

1. Large mould gear box, ultra-high hardness gear, longer life of the whole machine;

2. Large capacity stone collecting box, lengthened and thicker big oil cylinder, high efficiency of automatic loading of Rock Picker Machine

3. Rock Picker Machine with Special wear-resistant teeth for shovels, longer wear-resistant life;
